Wireless HDMI Extender 50M Can be extended through the wall
Dispatch : Ships within 5-7 business days
Shopping: Free Shipping
Shopping: Free Shipping
Sold :12
$249.86
Product Description
All packages from Allsmartlife.com are sent without Allsmartlife or any information indicating Allsmartlife.com. Due to package variations from suppliers, the product packaging customers receive may be different from the images displayed.
To enable volume discounts on this site, use coupon code: Please enter the number in Quantity you want , all discount rate will be created automatically.
What is Bulk Rate? BulkRate is a semi-wholesale system with items priced separately from retail. When you use bulk rates, most of country are free shipping and will automatically be added to your cart to ensure delivery of package. While BulkRate intention is to offer cheaper prices when you buy in bulk, you will get a discount automatically base on the quantity you purchased. If you are looking for wholesale prices please
feel free to contact us. Any requirements of custom made Please contact us.
feel free to contact us. Any requirements of custom made Please contact us.
Product Description
This HDMI Wireless extender uses 5G technology which enables high-speed, high performance wireless communication among consumer electronics, computer and mobile devices.
It combines high bandwidth capacity to robust error-correction ,to deliver uncompressed HD video, multi-channel surround sound.
It can go through the wall, and the transmitting distance of wireless can be up to 50m in the open area.
It combines high bandwidth capacity to robust error-correction ,to deliver uncompressed HD video, multi-channel surround sound.
It can go through the wall, and the transmitting distance of wireless can be up to 50m in the open area.
Features
l Support HDMI 1.4a version
l Support HDCP1.3
l Wireless conform to IEEE802.15.4 and IEEE802.11
l Support input & output the highest resolution up to 1920x1080/60Hz
l Support transmitter the highest resolution up to 720P/60Hz
l Support the highest rate 1.485G and TMDS clock up to 148.5Mhz
l Working in 5G frequency band, it is not easy to be interfered by Wireless signals
l The longest distance can be 50m (Under the condition of open area)
l 5V/1.5A power adaptor
l Support HDMI 1.4a version
l Support HDCP1.3
l Wireless conform to IEEE802.15.4 and IEEE802.11
l Support input & output the highest resolution up to 1920x1080/60Hz
l Support transmitter the highest resolution up to 720P/60Hz
l Support the highest rate 1.485G and TMDS clock up to 148.5Mhz
l Working in 5G frequency band, it is not easy to be interfered by Wireless signals
l The longest distance can be 50m (Under the condition of open area)
l 5V/1.5A power adaptor

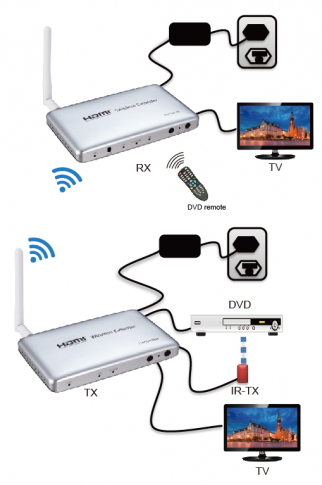

Connection and Operation:
1: Connect the HD source to the input of the wireless extender TX with 1 HDMI cable
2. Connect the output of the wireless extender TX to the source with 1 HDMI cable
3: Connect the output of the wireless extender RX to the display with 1 HDMI cable
4: Connect 5V/1.5A power adapter to the TX and RX.
The code:
The transmitter and the receiver extender have matched well in the factory, But if the user needs to match again (ex: the matched well transmitter or receiver needs to match other receiver or transmitter)
Please follow the steps:
1. TX: Connect the power supply in shutdown mode, hold down the code button and then press the power button again; OFF indicator light is off, ON indicator light is on.
2. RX: Connect the power supply in shutdown mode, hold down the code button and then press the power button again; OFF indicator light is off, ON indicator light is on.
3. When the “ON”light of TX and the RX and Wireless light are on, the code is successful;
Firstly release the power button and then release the code button.
When the "OFF" is on，the whole process of code is over. After the reboot, it can be used.
Instruction:
1. Bright “OFF” shows shutdown, and Bright “ON” shows working state.
2. When Wireless is flashing , it is transmitting or receiving HDMI Wireless signal; When the IR is flashing, it has received the infrared signal (the signal of remote control).
3. “Pair” is code button, “Reset” is Reset button ( Please use tiny hard objects to touch button, such as a toothpick) ,after the HDMI Extender is reset, "OFF" light is on .
4. "Power" is switch button, when it works state ,press "Power ",after the "ON" indicator is bright, and the extender will work; When it is shutdown, press "Power " ( above 3S ),the "OFF" indicator is off, and the extender will be shutdown.
1: Connect the HD source to the input of the wireless extender TX with 1 HDMI cable
2. Connect the output of the wireless extender TX to the source with 1 HDMI cable
3: Connect the output of the wireless extender RX to the display with 1 HDMI cable
4: Connect 5V/1.5A power adapter to the TX and RX.
The code:
The transmitter and the receiver extender have matched well in the factory, But if the user needs to match again (ex: the matched well transmitter or receiver needs to match other receiver or transmitter)
Please follow the steps:
1. TX: Connect the power supply in shutdown mode, hold down the code button and then press the power button again; OFF indicator light is off, ON indicator light is on.
2. RX: Connect the power supply in shutdown mode, hold down the code button and then press the power button again; OFF indicator light is off, ON indicator light is on.
3. When the “ON”light of TX and the RX and Wireless light are on, the code is successful;
Firstly release the power button and then release the code button.
When the "OFF" is on，the whole process of code is over. After the reboot, it can be used.
Instruction:
1. Bright “OFF” shows shutdown, and Bright “ON” shows working state.
2. When Wireless is flashing , it is transmitting or receiving HDMI Wireless signal; When the IR is flashing, it has received the infrared signal (the signal of remote control).
3. “Pair” is code button, “Reset” is Reset button ( Please use tiny hard objects to touch button, such as a toothpick) ,after the HDMI Extender is reset, "OFF" light is on .
4. "Power" is switch button, when it works state ,press "Power ",after the "ON" indicator is bright, and the extender will work; When it is shutdown, press "Power " ( above 3S ),the "OFF" indicator is off, and the extender will be shutdown.
