General |
|
Brand |
Allsmartlife |
|
Quantity |
1+Piece |
|
Form Color |
Black |
|
Specification |
|
HDMI signal |
Compatible with HDCP |
|
Resolution supported |
480i@60Hz、480p@60Hz、576i@50Hz、720p@50/60Hz、1080p@50/60Hz |
|
Network cable |
low resistance and consumption oxygen-free copper core (CAT6, CAT6A, CAT7) |
|
Transmission length |
CAT6: 60m at 1080p |
|
IR remote control |
Support 20-60KHz wide frequency IR remote control |
|
Power supply |
DC5V/1A |
|
Power consumption |
TX<2W RX<2W |
|
Packing List |
|
1 x HDMI Extender |
All packages from Allsmartlife.com are sent without Allsmartlife or any information indicating Allsmartlife.com. Due to package variations from suppliers, the product packaging customers receive may be different from the images displayed.
To enable volume discounts on this site, use coupon code: Please enter the number in Quantity you want , all discount rate will be created automatically.
What is Bulk Rate? BulkRate is a semi-wholesale system with items priced separately from retail. When you use bulk rates, most of country are free shipping and will automatically be added to your cart to ensure delivery of package. While BulkRate intention is to offer cheaper prices when you buy in bulk, you will get a discount automatically base on the quantity you purchased. If you are looking for wholesale prices please feel free to contact us. Any requirements of custom made Please contact us.
Product Description

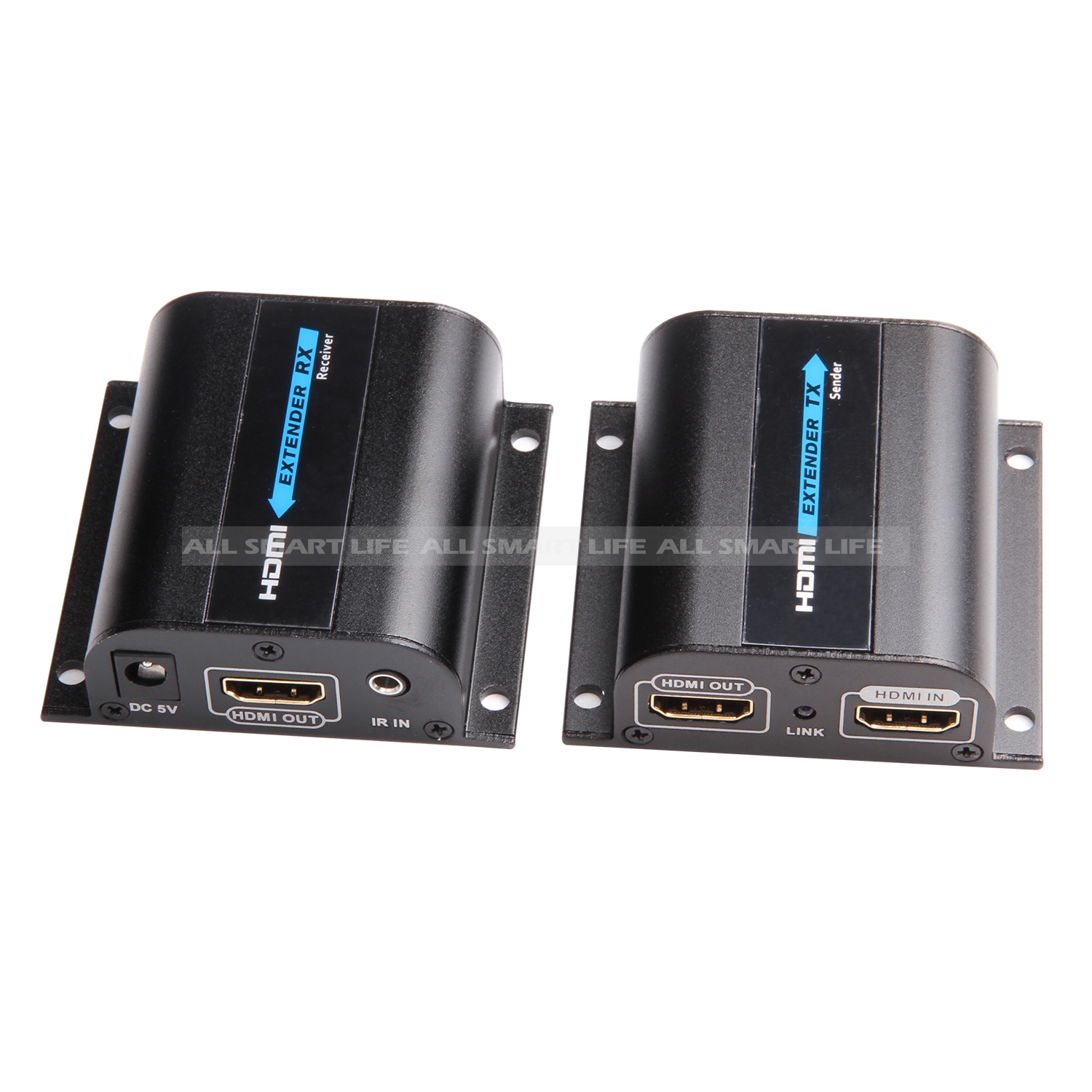

This HDMI extender delivers 1080P HDMI signal up to 60m/196ft over single CAT6 network cable, it supports IR signal transmission for remote cotrol the source device, build-in HDMI loop-out fro local display, lossless quality and auto adjustment to match the cable length of CAT6.
Features
1 HDMI over single CAT6 cable transmission up to 60m/196ft
2 HDMI loop-out for local display or monitoring function
3 Supports AV signal uncompressed & lossless tranmission
4 Auto adjustment to match the cable length from 1-60m of CAT6
5 Pure hardware transmission without any software or driver
6 Full HD 1080P transmission to make video image more vivid
7 IR signal transmission fro controlling the source device
Connection instruction:
1）Connect TX HDMI input with source device HDMI output.
2) Connect TX CAT6 with RX CAT6.
3) Connect RX HDMI output with HDTV HDMI input and set TV source input signal to be the right HDMI channel.
4) Power on the device and it works.
Installation Requirements
1.HDMI source device(computer graphics card, DVD,PS3, HD monitoring equipment etc)
2.HDMI display device like SDTV, HDTV, and projector with HDMI port.
3.UTP/STP cat6/6A/7 cable, follow standard IEEE-568B
Safety Notice:
1.Do not mix up HDMI to RJ45 sender and RJ45 to HDMI receiver before installation.
2.Do not hot plug when it is working.
3.Use DC5V power supply only . Make sure specification matched if using adapters not supplied by factory.
