General |
Brand |
Allsmartlife |
Quantity |
1+Piece |
Form Color |
Black |
Specification |
HDMI Signal |
Full compatible with HDCP |
Transport protocol |
HDbitT |
Support resolution |
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
IR remote control |
Support 20~60kHz IR remote device |
Transmit distance |
656FT 200m at 1080p@60Hz |
Working temperature |
0℃~60℃ |
Power supply |
DC5V/2A |
Power consumption |
TX<8.5W RX<5.5 W |
Enclosure material |
Metal |
Product dimension |
195.4(W)x137.5(D) x 30.8 (H) mm *2pcs |
Packing List |
Wireless HDMI EXTENDER sender TX×1pcs
Wireless HDMI EXTENDER receiver RX×1pcs
DC5V/2A DC ×2pcs
IR blaster extension cable*1PCS
IR receiver extension cable *1PCS
User Manual×1pcs
|
All packages from Allsmartlife.com are sent without Allsmartlife or any information indicating Allsmartlife.com. Due to package variations from suppliers, the product packaging customers receive may be different from the images displayed.
To enable volume discounts on this site, use coupon code: Please enter the number in Quantity you want , all discount rate will be created automatically.
What is Bulk Rate? BulkRate is a semi-wholesale system with items priced separately from retail. When you use bulk rates, most of country are free shipping and will automatically be added to your cart to ensure delivery of package. While BulkRate intention is to offer cheaper prices when you buy in bulk, you will get a discount automatically base on the quantity you purchased. If you are looking for wholesale prices please feel free to contact us. Any requirements of custom made Please contact us.
Product Description

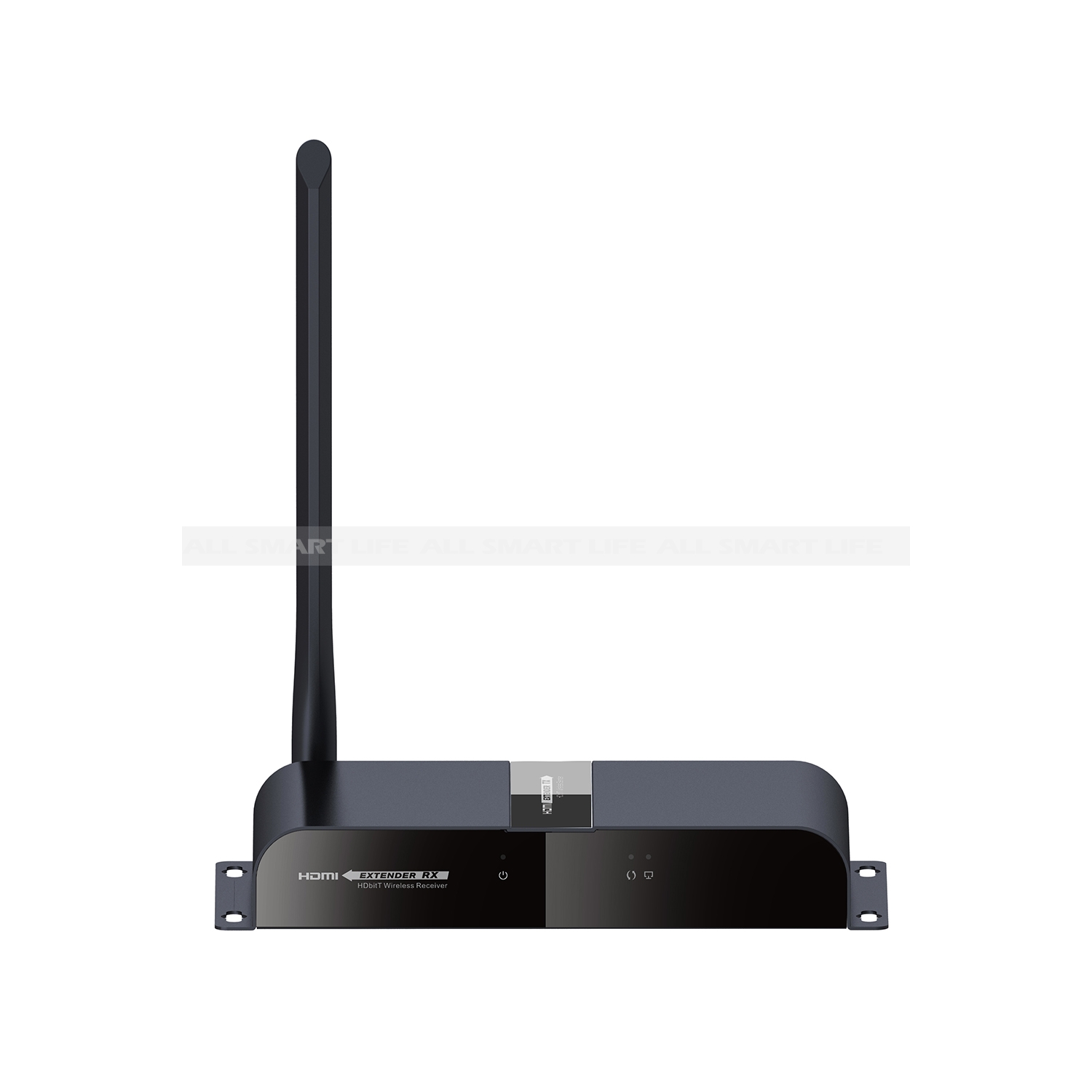

This transmitter extends HDMI signal wirelessly from source device to display device up to 200meters with the advanced application of HDBitT transport protocol and wireless technology. It requires no cables between sender (TX) and receiver (RX) which makes the installation easy and clean.
Features
1)Transmit HDMI signal from source device to display device up to 200meters wirelessly.
2)Support IR remote control function to control source device content from long distance.
3)No cable between sender(TX) and receiver(RX)
4)Easy and clean installation
Note:
1) Transmission distance will be different due to the environment.
2) Wall, brick or glass will shorten the signal cover range or cause big signal loss.
Important safety notice
Please read below safety instructions carefully before installation and operation:
Please pay attention to all the warnings and hints on this device.
Do not expose this unit to rain, moisture and liquid.
Do not put any stuff into the device.
Do not repaire the device or open the enclosure without professional person guidence to avoid electronic shock.
Make sure good ventilation openings to avoid product overheating damage.
Shut off power and make sure environment is safe before installation.
Do not plug-in/out the network cables and IR cables when it is in using to avoid cables damage.
Connection
1).Connect HDMI input with HDMI source device and connect IR blaster extension cable with IR OUT interface of the sender (TX).
2)Connect HDMI output with HDMI display device and connect IR receiver extension cable with IR IN interface..
3)Power on the device (power led lights) and it works.
Note:
When the wireless signal transmits through wall, glass or other obstacles, it will cause signal loss. Suggest installing this device in good environment with few obstacles.
The external environment wireless signal interfere the transmission, such as micro waver, wireless mouse and keyboard etc.
